CFP-AI-111是一款16通道、16位模擬輸入模塊，專為FieldPoint和Compact FieldPoint設計。該模塊的通道是單端模擬輸入通道，輸入阻抗為100Ω。此外，它還具有三種濾波器設置（50 Hz、60 Hz和500 Hz）以及三個輸入范圍（±20 mA、4 mA至20 mA和0mA至20 mA）。
在性能方面，CFP-AI-111的更新速率為3hz~0.83 Hz。它還提供集成功能，可以將信號進行板載測量和線性化，并將換算后的值返回給控制或監(jiān)測軟件。
在維護和安裝方面，CFP-AI-111具有超量程警報和板載診斷功能，以確保準確無誤的安裝和維護。
總的來說，CFP-AI-111是一款功能豐富、性能穩(wěn)定的模擬輸入模塊，適用于各種需要精確測量和采集模擬信號的應用場景。

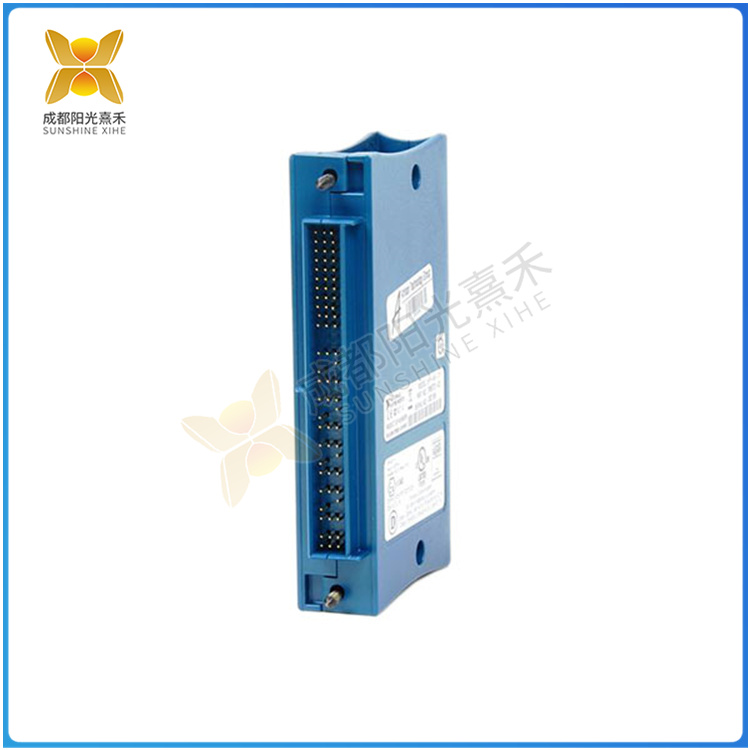

CFP-AI-111

The CFP-AI-111 is a 16-channel, 16-bit analog input module designed for FieldPoint and Compact FieldPoint. The channel of the module is a single-ended analog input channel with an input impedance of 100Ω. It also has three filter Settings (50 Hz, 60 Hz, and 500 Hz) and three input ranges (±20 mA, 4 mA to 20 mA, and 0mA to 20 mA).
In terms of performance, the CFP-AI-111 has an update rate of 3hz to 0.83 Hz. It also provides integrated functionality to measure and linearize the signal onboard and return the converted value to control or monitoring software.
In terms of maintenance and installation, the CFP-AI-111 has over-the-range alarms and onboard diagnostics to ensure accurate installation and maintenance.
Overall, the CFP-AI-111 is a feature-rich, stable analog input module for a variety of applications that require accurate measurement and acquisition of analog signals.
