PXIe-4132是一款可編程、高精度的源測量單元（SMU），它具有一個單獨隔離的SMU通道，提供四象限±100 V輸出。該通道的源極功率和漏極功率均高達2 W，能夠以源級輸出和漏極輸出的方式在100 V電壓下提供高達20 mA的電流驅動，在40 V電壓下提供高達50 mA的電流驅動，在20 V電壓下提供高達100 mA的電流驅動。結合其高測量分辨率集成防護，PXIe-4132非常適用于集成電路、分立元件、PCB和電纜的高精度漏電測量。您還可以使用板載硬件序列生成引擎對各種組件（包括二極管和有機LED）進行高速I-V測量。
PXIe-4132的應用場景包括但不限于以下幾個方面：
集成電路測試：用于測試集成電路的漏電特性，以驗證其性能和可靠性。
電子元件測試：測試各種電子元件的電源特性和性能，如二極管、有機LED等。
電源管理測試：測試電源管理單元的特性，以確保電源系統的可靠性和穩定性。
傳感器測試：用于測試各種傳感器的電源特性和性能，如溫度傳感器、壓力傳感器等。
電池測試：PXIe-4132可以用于測試電池的充電和放電特性，以評估電池的性能和壽命。

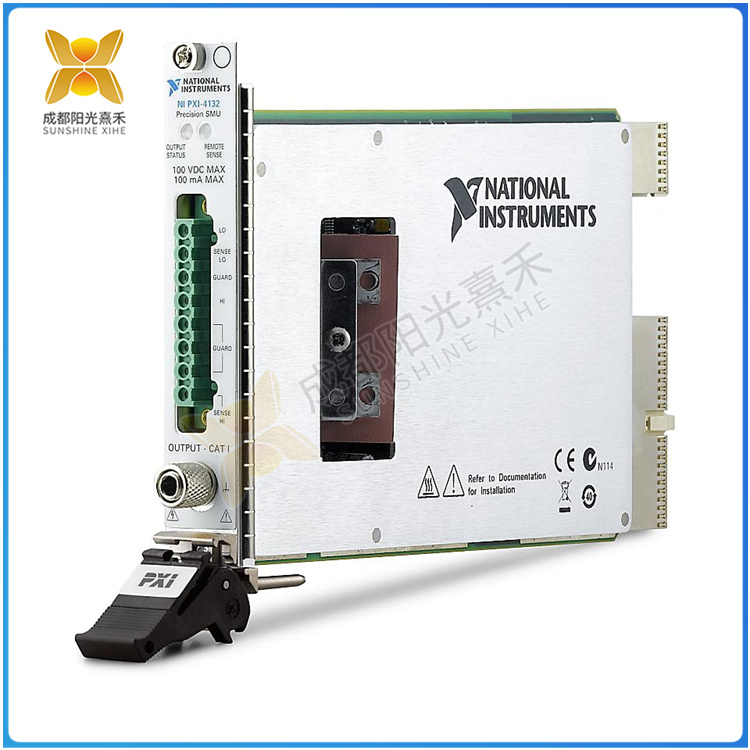

PXIe-4132

The PXIe-4132 is a programmable, high-precision source measurement unit (SMU) with a single isolated SMU channel providing a four-quadrant ±100 V output. With both source and drain power up to 2 W, the channel is capable of providing up to 20 mA of current drive at 100 V, up to 50 mA at 40 V and up to 100 mA at 20 V in the form of both source and drain outputs. Combined with its high measurement resolution integrated protection, the PXIe-4132 is ideal for high-precision leakage measurement of integrated circuits, discrete components, PCBS and cables. You can also use the onboard hardware sequence generation engine for high-speed I-V measurements of various components, including diodes and organic leds.
The application scenarios of PXIe-4132 include but are not limited to the following aspects:
Integrated circuit testing: Used to test the leakage characteristics of integrated circuits to verify their performance and reliability.
Electronic component testing: Test the power characteristics and performance of various electronic components, such as diodes, organic leds, etc.
Power Management test: Test the characteristics of the power management unit to ensure the reliability and stability of the power system.
Sensor testing: Used to test the power characteristics and performance of various sensors, such as temperature sensors, pressure sensors, etc.
Battery testing: The PXIe-4132 can be used to test the charging and discharging characteristics of the battery to evaluate the performance and life of the battery.
