1756-IF16H是一款模擬輸入模塊，屬于1756 ControlLogix PAC（可編程自動化控制器）系列。
該模塊支持通過硬連線和高速可尋址遠程傳感器(HART)通信協議集成0-20 mA或4-20 mA輸入信號。該模塊每通道提供十六(16)個差分電流信號和一(1)個HART調制解調器，用于將模擬信號轉換為數字信號，以供PLC或控制系統使用。
此外，1756-IF16H集成了采用逐次逼近法的模數轉換器(ADC)，模擬轉換分辨率范圍為16-21位，允許顯示更多的測量點。轉換后的信號以整數模式保存（左對齊，2s補碼）IEEE 32位浮點數。

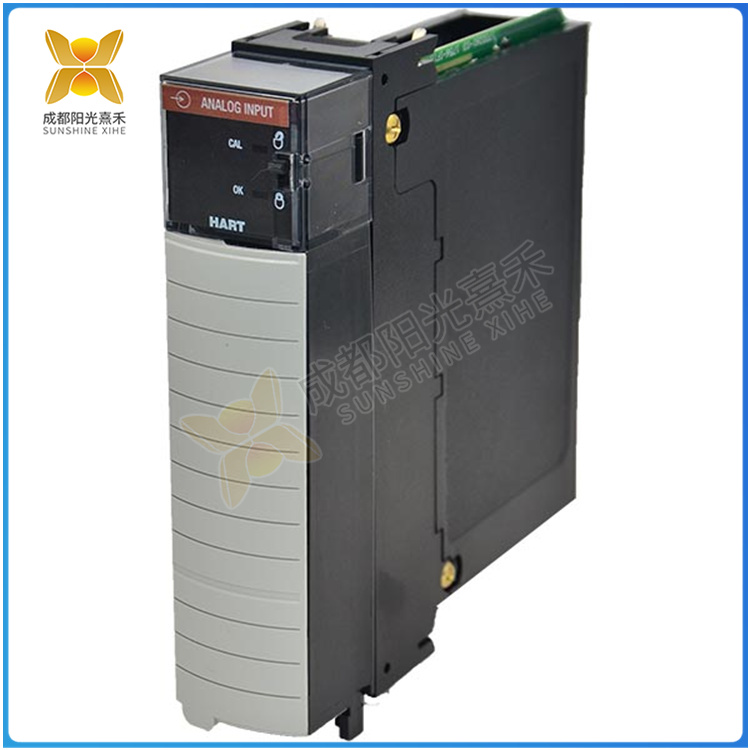

1756-IF16H

The 1756-IF16H is an analog input module belonging to the 1756 ControlLogix PAC (Programmable Automation Controller) family.
The module supports the integration of 0-20 mA or 4-20 mA input signals via hardwired and high-speed addressable Remote Sensor (HART) communication protocols. The module provides sixteen (16) differential current signals per channel and one (1) HART modem for converting analog signals to digital signals for use by a PLC or control system.
In addition, the 1756-IF16H incorporates a sequential approximation analog-to-digital converter (ADC) with a resolution range of 16-21 bits, allowing more measurement points to be displayed. The converted signal is stored in integer mode (left-justified, 2s complement) as an IEEE 32-bit floating-point number.
