A06B-6111-H030#H570主軸放大器接收來自數控系統的指令通常是通過電氣接口和信號傳輸實現的。
以下是主軸放大器接收數控系統指令的一般過程：
電氣接口：主軸放大器和數控單元之間通過電氣接口相連。這些接口可能是插頭和插座的形式，或者更現代化的系統中可能采用總線通信，如PCI Express、EtherCAT等。
模擬或數字信號：數控系統通過發送模擬信號（如電壓或電流）或數字信號（如串行通信協議）來向主軸放大器發送指令。數字信號通常遵循特定的通信協議，如FANUC專用的通信協議。
通信協議：主軸放大器和數控單元之間遵循特定的通信協議。這些協議定義了指令的格式、傳輸方式、傳輸速率以及主軸放大器如何解釋這些指令。
指令內容：數控系統發送的指令可能包括主軸的啟動/停止命令、轉速設定、正反轉控制、加速度和減速度控制等。這些指令通常通過預定義的參數或命令代碼來表示。
接收和處理：主軸放大器接收到指令后，內部的電路和微處理器會解讀這些指令，并根據指令內容控制主軸電機的驅動電路，從而實現對主軸電機的精確控制。
反饋機制：主軸放大器通常還會接收來自主軸電機的反饋信號，如轉速、溫度、電流等，并將這些信息傳回?cái)?shù)控系統，形成一個閉環控制系統，以確保主軸電機按照數控系統的指令運行。

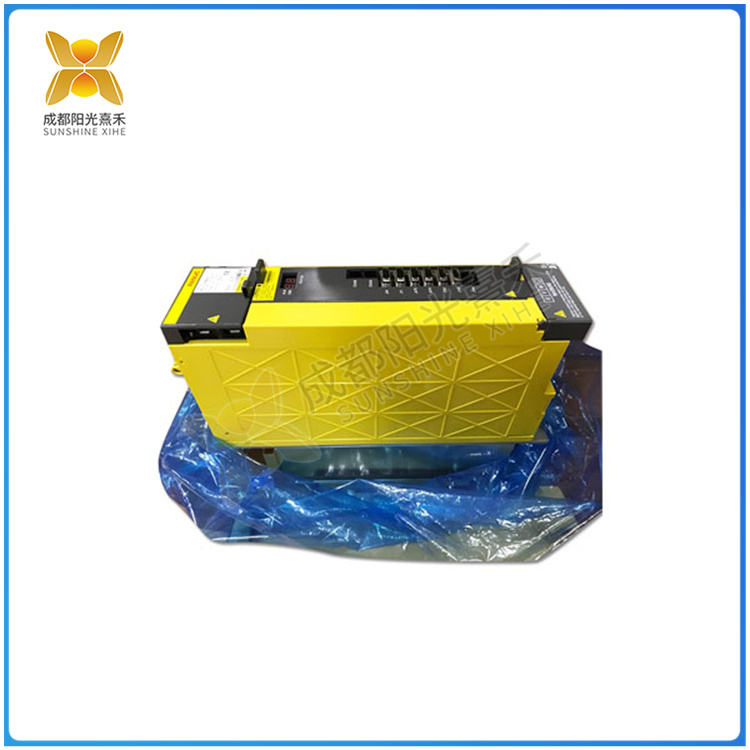

A06B-6111-H030#H570

The A06B-6111-H030#H570 spindle amplifier receives instructions from the numerical control system usually through the electrical interface and signal transmission.
The following is the general process for the spindle amplifier to receive the instructions of the CNC system:
Electrical interface: The spindle amplifier and the CNC unit are connected through an electrical interface. These interfaces may be in the form of plugs and sockets, or more modern systems may employ bus communication, such as PCI Express, EtherCAT, etc.
Analog or digital signals: The CNC system sends instructions to the spindle amplifier by sending an analog signal (such as voltage or current) or a digital signal (such as a serial communication protocol). Digital signals usually follow a specific communication protocol, such as the communication protocol specific to FANUC.
Communication protocol: A specific communication protocol is followed between the spindle amplifier and the CNC unit. These protocols define the format, transmission mode, transmission rate, and how the spindle amplifier interprets these instructions.
Instruction content: The instructions sent by the CNC system may include the start/stop command of the spindle, speed setting, positive and negative control, acceleration and deceleration control. These instructions are usually represented by predefined parameters or command codes.
Receiving and processing: After the spindle amplifier receives the instructions, the internal circuit and microprocessor will interpret these instructions and control the drive circuit of the spindle motor according to the instruction content, so as to achieve accurate control of the spindle motor.
Feedback mechanism: The spindle amplifier usually also receives feedback signals from the spindle motor, such as speed, temperature, current, etc., and sends this information back to the CNC system, forming a closed-loop control system to ensure that the spindle motor operates in accordance with the instructions of the CNC system.
