133300-01 電源輸入模塊是一款用于3500/15系列監控系統的低壓直流電源輸入模塊。這個模塊的設計是為了為監控系統提供穩定、可靠的直流電源供應。
首先，這個模塊被特別設計用于3500/15系列的電源模塊后卡，它是這一系列電源模塊的一部分。輸入電壓的額定值范圍是88至140 Vdc，這意味著它可以接受在這個范圍內的直流電壓輸入，并將其轉化為適合監控系統使用的電源。
此外，這個模塊需要安裝在機架的特定插槽中，通常是左側專門設計的插槽。在3500機架中，可以容納一個或兩個電源（交流和/或直流的任意組合），而133300-01模塊可以作為主電源的備用電源。這意味著，如果主電源出現故障，這個模塊可以立即接管，確保機架和監控系統的連續運行。這種設計大大提高了系統的可靠性和穩定性。
在性能方面，133300-01電源輸入模塊可以在-30 °C至+65 °C（-22 °F至+150 °F）的工作溫度范圍內正常運行，存儲溫度范圍則為-40 °C至+85 °C（-40 °F至+185 °F）。此外，它還具有良好的散熱性能，可以確保在高負荷運行時仍能保持穩定。
總的來說，133300-01電源輸入模塊是一款功能強大、可靠穩定的電源模塊，能夠為Bently Nevada的3500/15系列監控系統提供穩定、可靠的電源供應。無論是從設計、性能還是可靠性方面，它都表現出了極高的水平。

133300-01

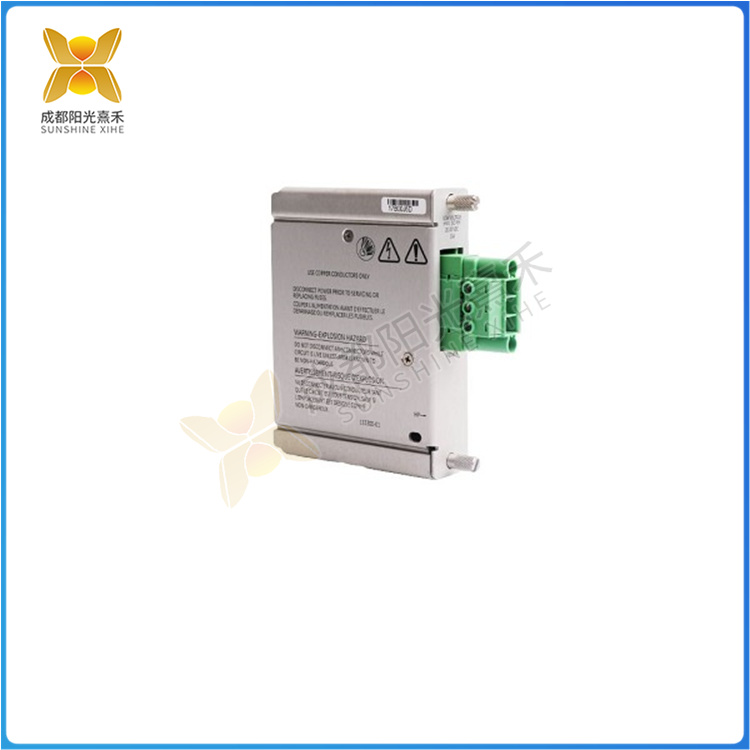

The 133300-01 Power input module is a low-voltage DC power input module for 3500/15 series monitoring systems. This module is designed to provide a stable and reliable DC power supply to the monitoring system.
First, this module is specially designed for use with the 3500/15 series power module rear card, which is part of this series of power modules. The input voltage rating range is 88 to 140 Vdc, which means that it can accept DC voltage input in this range and convert it into a power supply suitable for monitoring system use.
In addition, this module needs to be installed in a specific slot in the rack, usually a specially designed slot on the left side. In 3500 racks, one or two power supplies (any combination of AC and/or DC) can be accommodated, while the 133300-01 module can be used as a backup power supply to the main power supply. This means that if the main power supply fails, this module can take over immediately, ensuring continuous operation of the rack and monitoring system. This design greatly improves the reliability and stability of the system.
In terms of performance, the 133300-01 power input module can operate in the operating temperature range from -30 °C to +65 °C (-22 °F to +150 °F), and the storage temperature range is from -40 °C to +85 °C (-40 °F to +185 °F). In addition, it also has good heat dissipation performance, which can ensure that it can remain stable during high load operation.
Overall, the 133300-01 power input module is a powerful, reliable and stable power module capable of providing a stable and reliable power supply for Bently Nevada’s 3500/15 series monitoring systems. Whether in terms of design, performance or reliability, it has shown a very high level.
