USAQEM-03-SU21交流伺服電機是一種兩相的交流電動機，其內部的轉子是永磁鐵。驅動器控制的U/V/W三相電形成電磁場，轉子在此磁場的作用下轉動。同時，電機自帶的編碼器會反饋信號給驅動器，驅動器根據反饋值與目標值進行比較，從而調整轉子轉動的角度。
交流伺服電動機的結構主要可分為定子部分和轉子部分。定子的結構與旋轉變壓器的定子基本相同，在定子鐵心中安放著空間互成90度電角度的兩相繞組，其中一組為激磁繞組，另一組為控制繞組。激磁繞組兩端施加恒定的激磁電壓，控制繞組兩端施加控制電壓。當定子繞組加上電壓后，伺服電動機就會轉動起來。
交流伺服電機具有以下三種轉速控制方式：
幅值控制：控制電流與勵磁電流的相位差保持90°不變，改變控制電壓的大小。
相位控制：控制電壓與勵磁電壓的大小保持額定值不變，改變控制電壓的相位。
幅值-相位控制：同時改變控制電壓幅值和相位。
交流伺服電動機轉軸的轉向隨控制電壓相位的反相而改變。其工作特性以機械特性和調節特性為表征。在控制電壓一定時，負載增加，轉速下降；在負載一定時，控制電壓越高，轉速也越高。由于轉子導體電阻足夠大，使得總電磁轉矩始終是制動性的轉矩，這也是交流伺服電動機與異步電動機的重要區別。
此外，交流伺服電機具有運行穩定、可控性好、響應快速、靈敏度高以及機械特性和調節特性的非線性度指標嚴格等特點。它在工業自動化、機床、印刷、紡織、機器人等領域得到廣泛應用，其高速響應和較高的功率密度使其適用于高精度和高性能的應用。

USAQEM-03-SU21

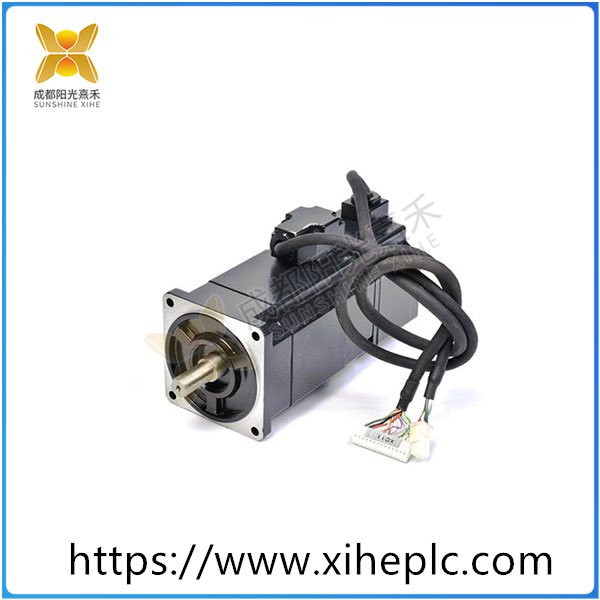

USAQEM-03-SU21 AC servo motor is a two-phase AC motor whose internal rotor is a permanent magnet. The U/V/W three-phase electric current controlled by the driver forms an electromagnetic field under which the rotor rotates. At the same time, the encoder with the motor will feed back the signal to the driver, and the driver will adjust the rotation Angle of the rotor according to the feedback value and the target value.
The structure of AC servo motor can be divided into stator part and rotor part. The structure of the stator is basically the same as that of the stator of the rotary transformer. In the stator core, there are two phase windings with a space of 90 degrees electrical Angle, one of which is the excitation winding and the other is the control winding. A constant excitation voltage is applied to both ends of the excitation winding, and the control voltage is applied to both ends of the control winding. When a voltage is applied to the stator windings, the servo motor will turn.
Ac servo motor has the following three speed control methods:
Amplitude control: The phase difference between the control current and the excitation current remains unchanged at 90° to change the size of the control voltage.
Phase control: The size of the control voltage and the excitation voltage remains unchanged, and the phase of the control voltage is changed.
Amplitude-phase control: Change the amplitude and phase of the control voltage simultaneously.
The steering of the shaft of the AC servo motor changes with the inversion of the control voltage phase. Its operating characteristics are characterized by mechanical characteristics and regulatory characteristics. When the control voltage is fixed, the load increases and the speed decreases. When the load is fixed, the higher the control voltage, the higher the speed. Because the rotor conductor resistance is large enough, the total electromagnetic torque is always the torque of the brake, which is also an important difference between AC servo motors and asynchronous motors.
In addition, the AC servo motor has the characteristics of stable operation, good controllability, fast response, high sensitivity and strict nonlinearity index of mechanical characteristics and adjustment characteristics. It is widely used in industrial automation, machine tools, printing, textile, robotics and other fields, and its high-speed response and high power density make it suitable for high-precision and high-performance applications.
