PCI-6541是一款用于連接數字電子產品的高速PCI模塊化儀器，具體功能和應用如下：
它提供了32通道的高速數字I/O處理，每通道的最高傳輸速率可以達到50MB/s，并且通道的方向是可控的。此外，其高容量的板載內存具有觸發和模式編列的功能，并能通過NI-HSDIO驅動器配置5.0V、3.3V、2.5V或1.8V的邏輯電壓。
PCI-6541可以通過同步內存核心（SMC）不僅利用數字化儀、任意波形生成器和其他數字波形生成器/分析儀，創建混合信號測試系統；還可以通過同步多種數字設備建立低失真（low-skew）、多通道系統，非常適合應用于高速量測之環境及需求，如IC邏輯訊號量測、平行數據傳輸及高速輸入輸出量測與控制等。
同時，PCI-6541提供的樣式比對（Pattern Match）功能，可以用來監控重要的數字輸入訊號，當發現數據狀況改變時，系統會立即呼叫中斷進行警急狀況處理。

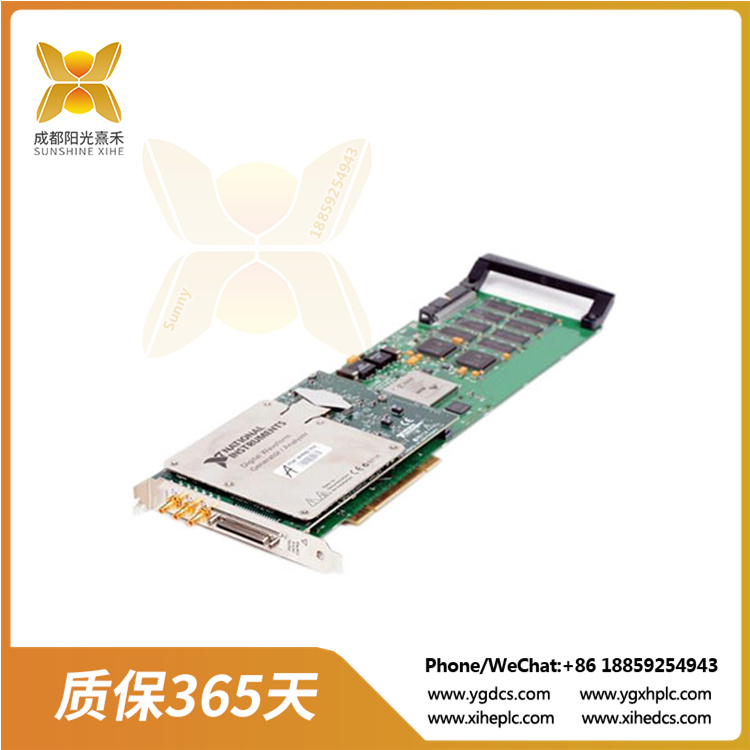

PCI-6541

Pci-6541 is a high-speed PCI modular instrument for connecting digital electronics with the following functions and applications:
It provides 32 channels of high-speed digital I/O processing, with a maximum transfer rate of 50MB/s per channel, and the direction of the channel is controllable. In addition, its high-capacity onboard memory has trigger and mode scheduling capabilities and can be configured with 5.0V, 3.3V, 2.5V or 1.8V logic voltages via NI-HSDIO drives.
The PCI-6541 enables the creation of mixed-signal test systems using a synchronous memory core (SMC) that leverages not only digitizers, arbitrary waveform generators, and other digital waveform generators/analyzers; It can also build low-skew, multi-channel systems by synchronizing multiple digital devices, ideal for applications in high-speed measurement environments and requirements, such as IC logic signal measurement, parallel data transmission, and high-speed input and output measurement and control.
At the same time, the PCI-6541 provides a Pattern Match function, which can be used to monitor important digital input signals, and when the data status changes, the system will immediately call an interrupt for emergency processing.
