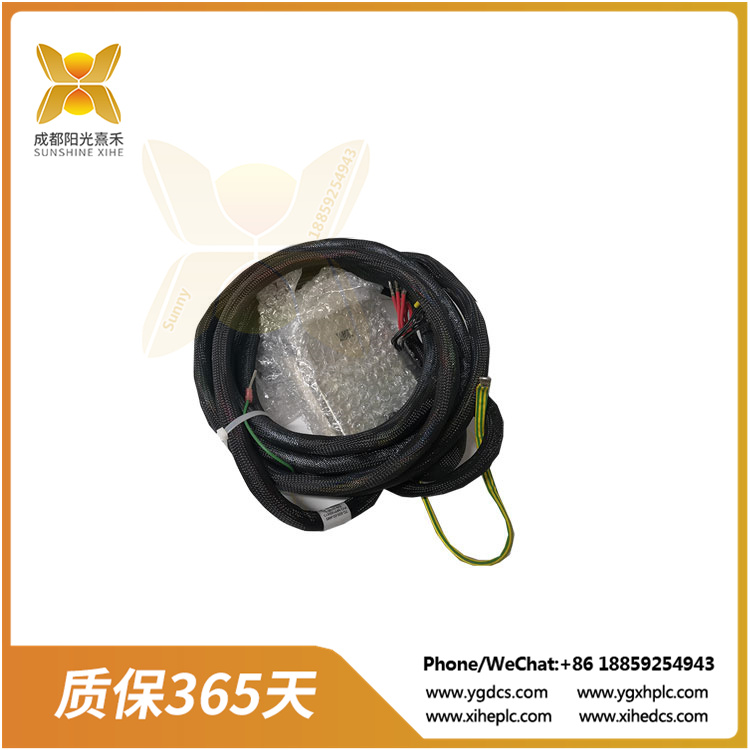

基本細節:TC-505-02-4M5 數字輸入/輸出模塊 可信I/O?

TC-505-02-4M5提供了Trusted?I/O (input/output)線纜的詳細信息
在SmartSlot組中可用。這些類型的電纜提供連接設施之間的
可信的模擬和數字輸入/輸出模塊，以及可信的現場終端組件
(FTAs)或可信通用現場終端組件(VFTAs)根據需要。電纜也是
可在一端提供“飛線”，以便連接到條件端子。
目前可用的可信I/O smartlot電纜類型列在第4頁的表1中。
電纜是根據用戶要求制造的，因此電纜絕緣的長度和類型
必須指定。長度必須以xmx格式指定到最接近的0.5 m，例如，a為2m0
電纜長度2.0 m。此細節必須添加到零件號的末尾。請注意
電纜長度是首選選項，可能更容易獲得;請參閱羅克韋爾自動化
細節。電纜絕緣類型是電纜部件號的一部分，用02表示
低煙零鹵(LSZH)或03 UL認證電纜材料。02也是阻燃的。
建議I/O線纜長度不超過15m。如果需要，可以指定比這個長度長的電纜
必要的，但可能會受到電壓下降，失調，串?dāng)_和噪聲的影響，并將呈現材料
處理問題。
內部電纜是為連接在相鄰機箱中的電纜而設計的。如果
電纜需要離開外殼環境，外部電纜有更多的保護。請注意,
“外部”電纜沒有鎧裝，不適合真正的外部使用，必須仍然是
小心對待。這些電纜在通過電纜路線時需要保護，并且應該
也不能被連接器拉動。它們應該通過運輸/壓縮進入櫥柜
阻塞和不能被填充。

TC-505-02-4M5

TC-505-02-4 The M5 provides detailed information about Trusted?I/O (input/output) cables
Available in SmartSlot groups. These types of cables provide connections between facilities
Trusted analog and digital input/output modules, and trusted field terminal components
(FTAs) or Trusted Universal Field Terminal Components (VFTAs) as required. So are cables.
A “fly wire” can be provided at one end for connection to the condition terminal.
The types of trusted I/O smartlot cables currently available are listed in Table 1 on page 4.
Cables are manufactured according to user requirements, hence the length and type of cable insulation
Must be specified. The length must be specified in xmx format to the nearest 0.5 m, for example, a is 2m0
The cable length is 2.0 m. This detail must be added to the end of the part number. Attention please
Cable length is the preferred option and may be easier to obtain; See Rockwell Automation
Details. The cable insulation type is part of the cable part number and is represented by 02
Low smoke Zero halogen (LSZH) or 03 UL certified cable material. 02 is also flame retardant.
It is recommended that the length of an I/O cable not exceed 15m. If desired, you can specify a cable longer than this length
Necessary, but may be affected by voltage drop, offset, crosstalk and noise, and will present the material
Deal with the problem.
Internal cables are designed for cables connected in adjacent cases. if
Cables need to leave the enclosure environment, and external cables have more protection. Please note,
“External” cables are not armored, are not suitable for true external use, and must still be
Be careful. These cables need protection as they pass through the cable route, and should
It can’t be pulled by the connector. They should be transported/compressed into the cabinet
Blocked and cannot be filled.
