基本細節:CFP-1804 以太網/串行背板 要將 I/O 模塊鏈接到輸入信號或外部負載

CFP-1804以太網/串行背板 （部件號： 779490-01） 可安裝在面板上或常規 19 英寸機架中。在使用這些安裝程序之前，用戶應從模型背面記下序列號。重要的是要記住，如果用戶將 UL 認可的 I/O 模塊與 Compact FieldPoint 系統一起使用，那么他們必須將整個系統安裝在適當額定值、UL 認證的 NEMA 或 IP 外殼中。為保證最高的冷卻效率，用戶應安裝緊湊型 FieldPoint 系統，使 I/O 模塊通風口位于頂部和底部。該設備的通信速率為 10 Mbps、100 Mbps 和自動協商速率。
4 插槽 cFP-1804 背板能夠?qū)⒕o湊型 FieldPoint I/O 模塊連接到高速以太網或 RS-232 串行端口（可使用 9 針 D-SUB 公對母直插電纜進行鏈接）。要在以太網或串行網絡上使用設備，必須首先使用測量和自動化瀏覽器（MAX）工具進行配置。要將 I/O 模塊鏈接到輸入信號或外部負載，用戶必須為背板上的每個 I/O 型號安裝 cFP-CB-x 連接器模塊或其他連接附件。用戶可以使用每個 I/O 型號插槽右側的連接器插座。用戶應小心，不要在通電時安裝或取出連接器塊或其他連接附件。該設備具有 10BaseT 和 100BaseTX 以太網網絡接口，并與 IEEE802.3 兼容。
CFP-1804使用FieldPoint軟件運行，該軟件與LabVIEW、LabVIEW實時模塊、LabWindows/CVI、Measurement Studio或VI Logger等軟件包/應用開發環境（ADE）兼容。您選擇的 ADE 應安裝在 FieldPoint 軟件之前。
用戶可以將National Instruments CFP-1804背板連接到以太網和/或RS-232網絡。此外，用戶還可以通過將至少兩臺NI cFP-1804儀器連接到用戶的PC來構建基于PC的分布式I/O和控制系統。該設備重 2 磅。

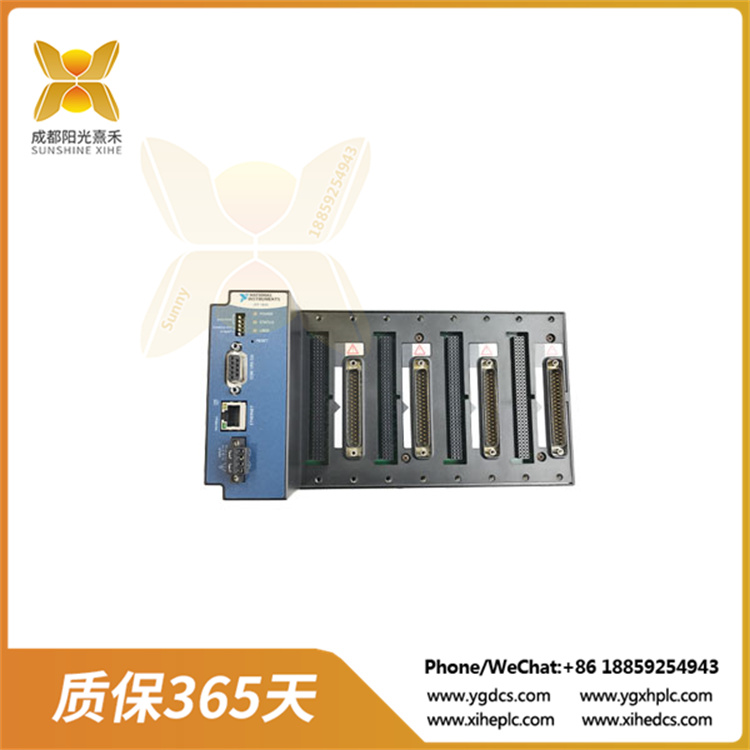

CFP-1804

The CFP-1804 Ethernet/Serial backplane (Part number: 779490-01) can be mounted on the panel or in a regular 19-inch rack. Before using these installers, the user should write down the serial number on the back of the model. It is important to remember that if a user uses a UL-approved I/O module with a Compact FieldPoint system, they must install the entire system in an appropriately rated, UL-certified NEMA or IP housing. To ensure maximum cooling efficiency, users should install a compact FieldPoint system with I/O module vents at the top and bottom. The device has communication rates of 10 Mbps, 100 Mbps, and auto-negotiated rates.
The 4-slot cFP-1804 backplane is capable of connecting compact FieldPoint I/O modules to high-speed Ethernet or RS-232 serial ports (which can be linked using a 9-pin D-SUB male-to-female in-line cable). To use a device on an Ethernet or serial network, it must first be configured using the Measurement and Automation Browser (MAX) tool. To link an I/O module to an input signal or external load, the user must install a cFP-CB-x connector module or other connection accessory for each I/O model on the backplane. Users can use the connector socket on the right side of each I/O model slot. Users should be careful not to install or remove connector blocks or other connection accessories while powered on. The device has 10BaseT and 100BaseTX Ethernet network interfaces and is compatible with IEEE802.3.
The CFP-1804 runs with FieldPoint software, which is compatible with software packages/application development environments (ades) such as LabVIEW, LabVIEW Real-time Module, LabWindows/CVI, Measurement Studio or VI Logger. The ADE you select should be installed before FieldPoint software.
Users can connect the National Instruments CFP-1804 backplane to Ethernet and/or RS-232 networks. In addition, users can build PC-based distributed I/O and control systems by connecting at least two NI cFP-1804 instruments to the user’s PC. The device weighs 2 pounds.
