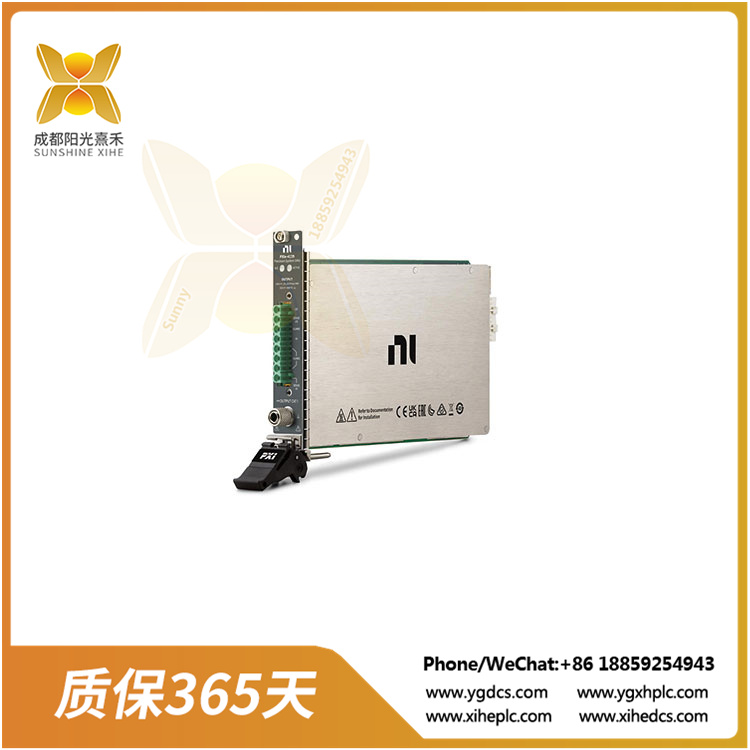

基本細節:PXIE-4139 高精度系統源測量單元 具有四象限操作功能

PXle、±60V、±3A直流電、±10A脈沖、40W直流電、100 fA精密系統 PXI源測量單元
PXle-4139是一款高精度系統源測量單元(SMU)，具有四象限操作功能，可提供高達40 W的直流電。該模塊配有模數轉換器，可幫助您以100 fA的電流分辨率執行高精度測量或以高達1.8 MS/s的速度進行采集。該模塊還采用了SourceAdapt技術，可根據負載特性調整瞬態響應，從而最大限度提高穩定性和測量精度。PXle-4139適合多種應用，包括集成電路(IC)、電源管理集成電路(PMIC)和射頻集成電路(RFIC)等器件以及LED和光收發儀等分立元件的制造測試、板卡級測試和實驗室特性分析。
除非另有說明，規格在下列條件下有效。
?環境溫度1 23°C±5oC
?校準間隔為1年
?30分鐘的熱身時間
?在過去24小時內進行自校準
?niDCPower光圈時間屬性或NIDCPOWER_ATTR_APERTURE_TIME
屬性設置為2個電源線周期(PLC)
?當PXI Express機箱有多個風扇轉速設置時，將風扇設置為最高轉速

PXIE-4139

PXle, ±60V, ±3A DC, ±10A pulse, 40W DC, 100 fA precision system PXI source measurement unit
The PXle-4139 is a high-precision system Source measurement unit (SMU) with four-quadrant operation that delivers up to 40 W of direct current. The module is equipped with an analog-to-digital converter that helps you perform high-precision measurements with a current resolution of 100 fA or acquisition at speeds up to 1.8 MS/s. The module also uses SourceAdapt technology to adjust transient responses to load characteristics, maximizing stability and measurement accuracy. The PXle-4139 is suitable for a variety of applications, including manufacturing testing, board level testing and laboratory characterization of devices such as integrated circuits (ics), power management integrated circuits (PMIC) and radio frequency integrated circuits (RFIC), as well as discrete components such as leds and optical transceivers.
Unless otherwise stated, specifications are valid under the following conditions.
? Ambient temperature 1 23°C±5 °C
? The calibration interval is 1 year
?30 minutes warm-up time
? Self-calibration within the last 24 hours
?niDCPower aperture time attribute or NIDCPOWER_ATTR_APERTURE_TIME
Properties Set to 2 power line cycles (PLC)
? If the PXI Express chassis has multiple fan speed Settings, set the fan speed to the highest
