基本細節:1794-TB32 端子底座單元 最大 I/O 端子額定值為 2 A

1794-TB32 終端底座是 Flex I/O 1794 系列終端底座單元。它用于在完整的 Flex I/O 系統中托管不同類型的模塊。1794-TB32 端子底座支持面板安裝和DIN導軌安裝，用于其自身及其托管的模塊。它有32個I/O端子，8個公共端子和8個電壓端子。1794-TB32 終端基座是具有 IP 20 環保等級的開放式設備。
1794-TB32 Flex I/O 24 V AC/DC 端子底座單元是專為 32 點模塊設計的端子底座單元，為輸入/輸出接線提供連接點。它具有 32 個 I/O 最大連接容量，具有 8 個公共端子和 8 個電壓端子，用于 31.2 伏直流應用。它的電流容量為 10 A，F(xiàn)LEXBUS 額定值為 640 mA 和 5 V DC，最大 I/O 端子額定值為 2 A，V/COM 端子額定值為 31.2 V DC/AC，頻率為 50 至 60 赫茲。它能夠在現場接線端子和 FLEXBUS 之間提供 50 伏電路隔離和在 2121 伏直流電下測試的基本型絕緣 1 分鐘。
1794-TB32 具有 IEC T4 和 T4A（北美）溫度代碼，并配有開放式外殼。它的工作溫度范圍在 -20 和 70 攝氏度（-4 和 58 華氏度）之間，非冷凝濕度水平為 5% 至 95%，儲存在 -40 至 85 攝氏度（-40 至 185 華氏度）。1794-TB32 經過測試，可在 5 G 工作振動和 30 G 沖擊等級下保持標準規格的性能。它的尺寸約為 94 x 94 x 69 毫米（3.7 x 3.7 x 2.7 英寸），安裝了模塊，并通過了 c-UL-us 和 CSA 認證。
1794-TB32 Flex I/O 端子底座單元具有 0.56-0.79 Nm 端子螺絲扭矩、31.2V DC/AC、50/60Hz、最大 10A 電源電壓范圍和 50V 最大連續隔離電壓。它還以 0.21-1.3 mm^2 的線徑和 94x94x69 mm 的尺寸工作。

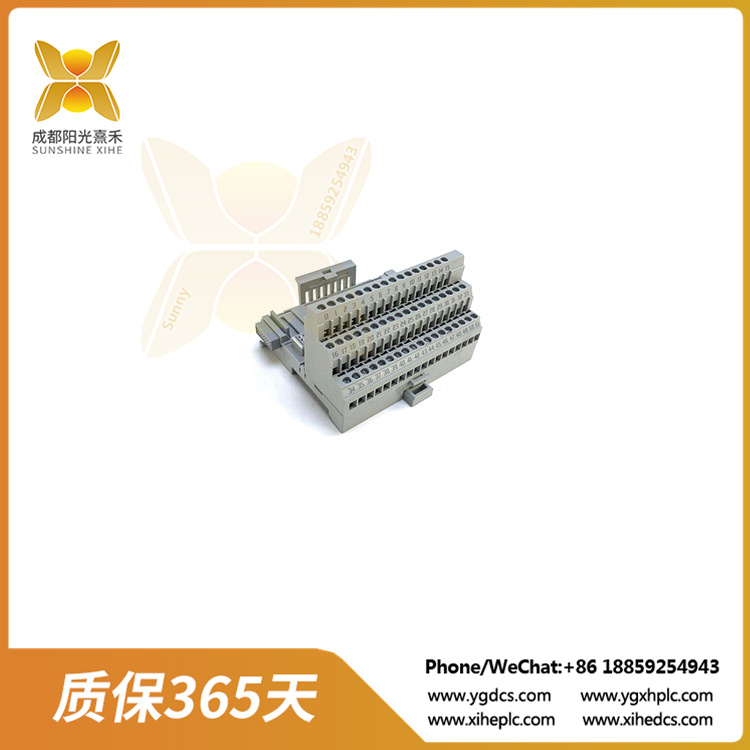

1794-TB32

The 1794-TB32 Terminal base is a Flex I/O 1794 series terminal base unit. It is used to host different types of modules in a complete Flex I/O system. The 1794-TB32 terminal base supports panel mounting and DIN rail mounting for itself and its hosted modules. It has 32 I/O terminals, 8 common terminals, and 8 voltage terminals. The 1794-TB32 terminal base is an open device with an IP 20 environmental rating.
The 1794-TB32 Flex I/O 24 V AC/DC terminal base unit is a terminal base unit designed for 32-point modules and provides a connection point for input/output wiring. It has a maximum connection capacity of 32 I/ OS, with 8 common terminals and 8 voltage terminals for 31.2 V DC applications. It has A current capacity of 10 A, a FLEXBUS rating of 640 mA and 5 V DC, a maximum I/O terminal rating of 2 A, a V/COM terminal rating of 31.2 V DC/AC, and a frequency of 50 to 60 Hz. It is capable of providing 50 volt circuit isolation and basic type insulation tested at 2121 volts DC for 1 minute between the field terminal and the FLEXBUS.
The 1794-TB32 has IEC T4 and T4A (North America) temperature codes and comes with an open housing. It operates in a temperature range between -20 and 70 degrees Celsius (-4 and 58 degrees Fahrenheit), has a non-condensing humidity level of 5% to 95%, and is stored at -40 to 85 degrees Celsius (-40 to 185 degrees Fahrenheit). The 1794-TB32 has been tested to maintain standard specification performance at 5 G operating vibration and 30 G impact ratings. It measures approximately 94 x 94 x 69 mm (3.7 x 3.7 x 2.7 inches), has modules installed, and is c-UL-us and CSA certified.
The 1794-TB32 Flex I/O terminal base unit features 0.56 to 0.79 Nm terminal screw torque, 31.2V DC/AC, 50/60Hz, a maximum supply voltage range of 10A, and a maximum continuous isolation voltage of 50V. It also operates in 0.21-1.3 mm^2 wire diameters and 94x94x69 mm dimensions.
