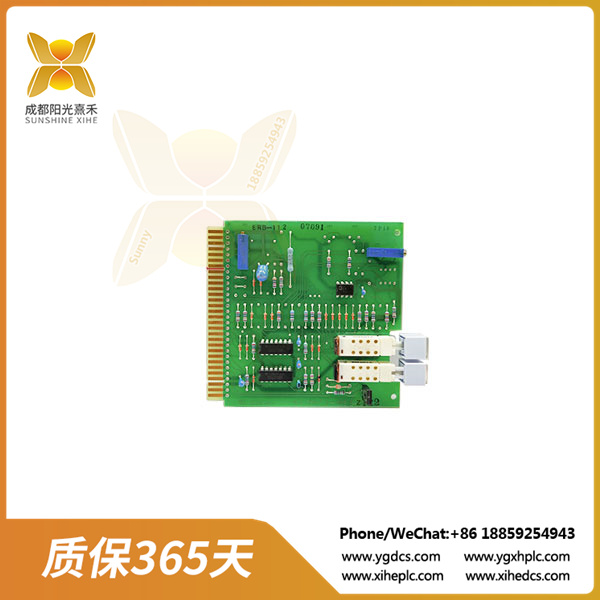

基本細節:EKC361 印刷電路板 實現電氣連接和功能實現的電子部件

ERB-112印刷電路板（Printed Circuit Board，簡稱PCB），是利用有機材料或無機基板上布線、埋置或貼裝元器件，實現電氣連接和功能實現的電子部件。它是電子設備中用于連接、支持和實現電氣性能的導電板，通過覆蓋表面導體層和穿孔導體層，將電容器、電阻器及其他元件焊接在制造好的覆銅曝光過的鉆孔上而形成。印刷電路板通常具有封裝套件，并與外部觸點相連以進行工作。

印刷電路板有多種類型，包括單面板、雙面板、多層板、剛性板、柔性板以及剛?cè)峤Y(jié)合板。單面板只有一層導電層，通常用于簡單的電路，如LED燈和電子玩具。雙面板具有兩層導電層，電子元件可以安裝在兩側，并通過穿孔連接，適用于中等復雜度的電路，如計算機硬盤驅動器和音頻放大器。多層板則具有三層或更多導電層，常用于高復雜度的電路，如計算機主板和手機。

ERB-112印刷電路板在電子消費行業、通信行業、汽車電子行業、工業控制與自動化行業以及醫療電子行業等領域都有廣泛的應用。它們在這些領域中發揮著連接電子元件、實現電氣連接和功能的作用，是電子設備中不可或缺的重要組成部分。
此外，印刷電路板的制造工藝涉及照相制版、圖像轉移、蝕刻、鉆孔、孔金屬化、表面金屬涂敷及有機材料涂敷等多個環節。而其主要材料則是覆銅板，覆銅板由基板、銅箔和粘合劑構成，不同的覆銅板材料適用于不同的工作環境和頻率要求。

ERB-112

ERB-112 Printed Circuit Board (Printed Circuit Board, referred to as PCB) is an electronic part that uses organic materials or inorganic substrates to route, bury or mount components to achieve electrical connection and functional realization. It is a conductive plate used to connect, support and achieve electrical properties in electronic devices by covering a surface conductor layer and a perforated conductor layer, and welding capacitors, resistors and other components to a manufactured copper-covered exposed drill hole. Printed circuit boards usually have package kits and are connected to external contacts for work.

There are many types of printed circuit boards, including single panel, double panel, multi-layer board, rigid board, flexible board and rigid and flexible board. A single panel has only one conductive layer and is commonly used in simple circuits such as LED lights and electronic toys. The dual panel has two conductive layers, and electronic components can be mounted on both sides and connected by perforation, suitable for circuits of moderate complexity, such as computer hard drives and audio amplifiers. Multilayer boards have three or more conductive layers and are often used in highly complex circuits, such as computer motherboards and mobile phones.

ERB-112 printed circuit boards are widely used in the consumer electronics industry, communications industry, automotive electronics industry, industrial control and automation industry, and medical electronics industry. They play a role in connecting electronic components and realizing electrical connections and functions in these fields, and are an indispensable and important part of electronic devices.
In addition, the manufacturing process of printed circuit boards involves many links such as photographic plate making, image transfer, etching, drilling, hole metallization, surface metal coating and organic material coating. The main material is copper-clad plate, which is composed of substrate, copper foil and adhesive, and different copper-clad plate materials are suitable for different working environments and frequency requirements.

如果您需要查詢或購買，請將產品型號發送到我的電子郵件或直接致電我

銷售經理:何經理

手機: + 86 18005021035

郵箱:?18005021035@163.com

與成都陽光熹禾合作我們提供一流的服務，實現更快的速度，交付多樣化的零件!

1.在24小時內及時回復您

2.交貨時間快

3.最好的服務，合理的價格

4.在生產線上工作多年，有良好的口碑

▲更多相關型號:EKC361 印刷電路板 實現電氣連接和功能實現的電子部件
