HYDRAN M2變壓器油中故障氣體在線監測系統
一般規格
基于已經現場驗證的技術，新的Hydran M2增加 了基于IEEE?和IEC?標準的變壓器數學模型，從 而可以提供實時的變壓器概況信息。這樣就不僅 僅是只監控溶解氣體和濕度，而是拓展到對變壓 器更多故障形式的監控。
當一臺重要變壓器發生不可預知的故障的時候， 就會對電網的運行和經濟性產生嚴重的影響。當 今，許多電網和工業用戶的油浸式變壓器都接近 了設計壽命的底線，并且表現出明顯的故障率升 高。對電力供應的嚴格規定，投資和操作費用的 預算的減少，和專業技術人員的短缺都需要延長 這些變壓器的使用壽命。
描述
Hydran M2是經濟的，它是功能強大的一體化變 壓器監控裝置，它允許電網和其他用戶部署對眾 多變壓器的監控，并且會從它先進的特性中得到 收益。
Hydran M2早期故障報警模型通過在線故障氣體 和濕度傳感器對變壓器和其他油浸式設備早期故 障進行監控。附加的數字和模擬量輸入允許對變 壓器其他變量的監控。新的變壓器模型拓展了Hydran M2的監控能力和資產管理能力，這可以 對設備操作和維護人員提供更多的決策幫助。

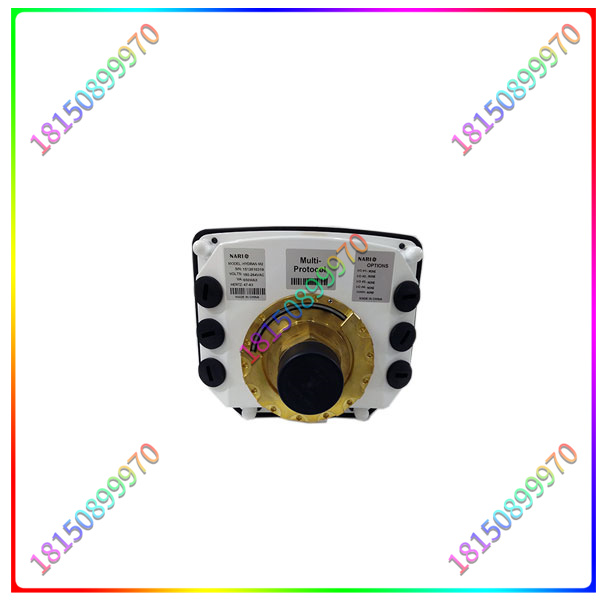

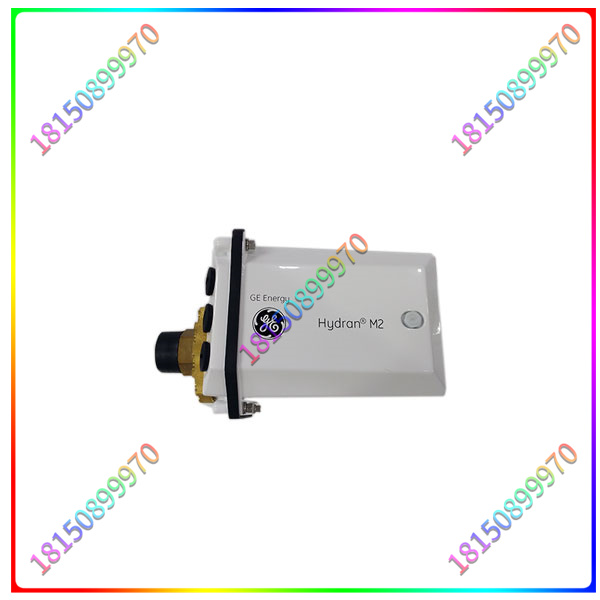

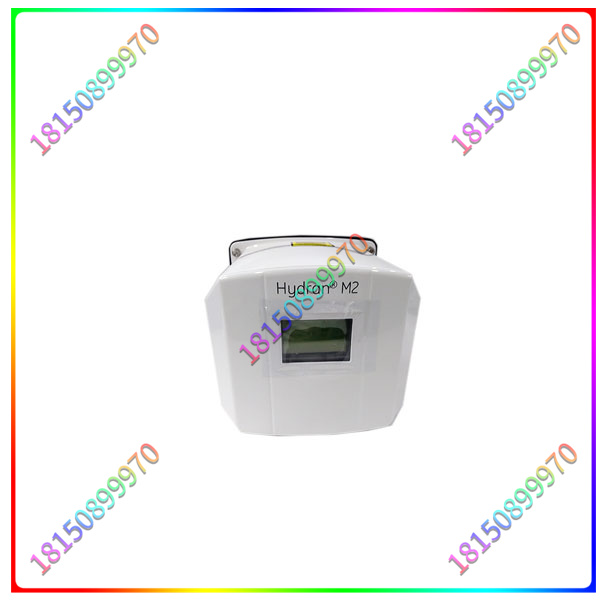

HYDRAN-M2
系統特性
? 實時油中故障氣體和濕度測量系統
? 不允許真空的氣體萃取膜
? 單獨閥門安裝，不需要附加泵和移動部件
? 基于微處理器的智能電子裝置 ? 全系統自測和自我診斷
? NEMA 4X(IP66) 外殼
? 數字化顯示，可翻屏控制
? 4個用于報警的可編程繼電器
? 1個自檢繼電器觸點
? 4個擴展I/O 插頭接頭，需要結合如下板卡 -隔離4-20mA 模擬輸入卡 -隔離雙通道數字輸入卡 -隔離4-20mA 模擬輸出卡
? 1個通訊擴展插頭接頭 -以太網10-100Base T 卡 -模擬調制解調器
? 就地隔離RS-232串行接口
? 遠方連接隔離RS-485串行接口
? 支持DNP3規約（串行接口或者TCP/IP）
? 擴展的可調整頻率數據和事件日志
? 可調整的關于氣體，濕度，模擬輸入和變壓器 模型計算的基于水平和趨勢的報警設置
? 友好的客戶機/服務器圖形化使用者界面 （GUI），允許多客戶機通過TCP/IP 接入
HYDRAN-M2
HYDRAN M2 on-line monitoring system for faulty gas in transformer oil
General specification
Based on field-proven technology, the new Hydran M2 adds a mathematical model of the transformer based on IEEE? and IEC? standards to provide real-time transformer overview information. This is not only to monitor dissolved gas and humidity, but also to expand the monitoring of more failure forms of the transformer.
When an important transformer has an unpredictable failure, it will have a serious impact on the operation and economy of the power grid. Today, many oil-immersed transformers for power grids and industrial users are approaching the bottom line of their design life and show a significant increase in failure rates. Strict regulations on power supply, reduced budgets for investment and operating costs, and a shortage of specialized technicians all require extending the service life of these transformers.
Description
The Hydran M2 is an economical, powerful, all-in-one transformer monitoring device that allows power grids and other users to deploy monitoring of multiple transformers and benefit from its advanced features.
The Hydran M2 Early Failure Alarm model monitors early failure of transformers and other oil-immersed equipment with in-line failure gas and humidity sensors. Additional digital and analog inputs allow monitoring of other transformer variables. The new transformer model expands the monitoring and asset management capabilities of the Hydran M2, which provides more decision-making assistance to equipment operators and maintenance personnel.
System characteristic
? Real-time faulty gas and humidity measurement system in oil
? Does not allow vacuum gas extraction membrane
? Separate valve installation, no additional pumps and moving parts required
? Intelligent electronic devices based on microprocessors ? System-wide self-testing and self-diagnosis
? NEMA 4X(IP66) housing
? Digital display, reversible screen control
? 4 programmable relays for alarm
? 1 self-checking relay contact
? Four expansion I/O plugs need to be combined with the following boards – isolated 4-20mA analog input cards – Isolated dual-channel digital input cards – isolated 4-20mA analog output cards
? 1 Communication expansion connector – Ethernet 10-100Base T card – Analog modem
? Isolated RS-232 serial interface in place
? Remote connection isolated RS-485 serial interface
? Support DNP3 protocol (serial interface or TCP/IP)
? Extended adjustable frequency data and event logging
? Adjustable level and trend-based alarm Settings for gas, humidity, analog input and transformer model calculations
? User-friendly client/server graphical user interface (GUI) that allows multi-client access over TCP/IP
