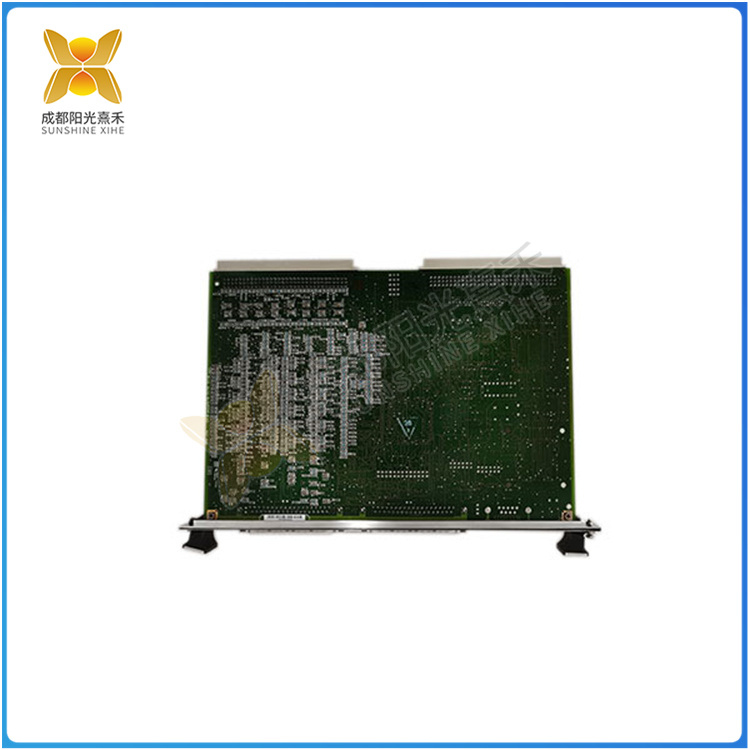

IS200VCRCH1B具有對所有保護參數和關鍵控制的三重冗余控制，以及用于保護和監控渦輪機系統的先進控制機制。
IS200VCRCH1B用作分立輸入/輸出板。這是一個單插槽板，具有與VCCC板相同的功能，但不包括子板，因此占用更少的機架空間。但是，由于此主板的繼電器輸出使用 VME 機架上的 J3/J4 端口，因此電纜必須放置在前面板上。如果不希望這樣做，請使用VCCC板而不是VCRC PCB。
IS200VCRCH1B有一個帶兩個電纜連接器（J33 和 J44）的前面板。面板還包含三個 LED 組件，它們位于電路板的頂角附近。這些 LED 為綠色、紅色和橙色，并標記為運行、失敗和狀態。

IS200VCRCH1B

The IS200VCRCH1B features triple redundant control over all protection parameters and critical controls, as well as advanced control mechanisms for protecting and monitoring turbine systems.
The IS200VCRCH1B is used as a discrete input/output board. This is a single slot board that has the same features as the VCCC board, but does not include the daughter board, so it takes up less rack space. However, since the relay output of this motherboard uses the J3/J4 port on the VME rack, the cable must be placed on the front panel. If you do not wish to do so, use a VCCC board instead of a VCRC PCB.
The IS200VCRCH1B has a front panel with two cable connectors (J33 and J44). The panel also contains three LED components, which are located near the top corner of the board. These leds are green, red, and orange, and are labeled Run, failed, and status.

IS200VCRCH1B
